Schematic Colors

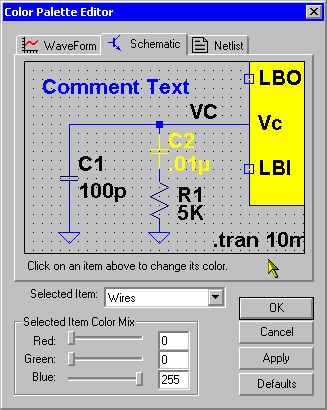

The menu command Tools=>Color Preferences colors allows you to set the colors used in displaying the schematics. You click on an object in the sample schematic and use the red, green and blue sliders to adjust the colors to your preferences.






Note: Non-electrical graphical annotations made to schematics such as lines and circles will be draw in the same color as a component body.
